Katool KT-H120D 12,000 lb Two-Post Hydraulic Car Lift
Heavy-duty two-post hydraulic lift engineered for professional garages and serious hobbyists. 12,000 lb capacity supports a wide range of vehicles including light trucks and SUVs. Dual hydraulic chain-drive cylinders and a top-mount power unit deliver consistent, controlled lifting action. Symmetric arm design with screw-on rubber lifting pads and +100 mm extension adaptors provides secure, adjustable pick points. Mechanical single-side manual lock release simplifies operation and allows precise height selection for service tasks. Drive-thru clearance and 74.8 in maximum lifting height accommodate taller vehicles and underbody access. Durable base plate configuration and reinforced structural posts ensure stability during full-capacity lifts. Requires minimum 5.9 in thick 3000 PSI concrete foundation for safe installation and long-term performance. 220V/60Hz single-phase power supply integrates with most garage electrical setups for straightforward installation. Includes user manual and warranty coverage on structural components and parts to support maintenance and repairs.
*Concrete thickness must be at least 5.9 (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customers responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 12000lbs lifting capacity 2 post lift
- Manual safety release from single side
- Symmetric arm, base plate design, dual Hydraulic chain-Drive Cylinders
- Robber pad door opening protection, screw-on pad and extension support adaptor sets +100mm
- Top level hydraulic system with 220V/60HZ/1PH

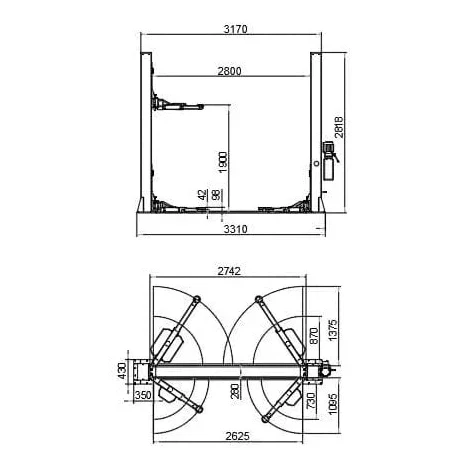

Specifications
| Item Weight | 120 pounds |
|---|---|
| Product Dimensions | 112 x 18 x 36 inches |
| Lifting Capacity | 12000lbs.(5500KG) |
| Height Overall | 110.94"/2818mm |
| Width Overall | 140"/3555mm |
| Dirve-Thru Clearance | 98.43"/2500mm |
| Max. Lifting Height | 74.8"/1900mm |
Shipping Coverage
- Freight shipping only within the lower 48 states.
- Fulfillment times are 6-10 business days.
- Free shipping applies to: Tire Changers, Tire Balancers, Shop Tool Equipment, and Scissor Lifts → delivered to commercial addresses or the nearest carrier terminal.
- Two-Post and Four-Post Lifts: Customer must provide a forklift for unloading. Please make sure to select the correct shipped or pick up option BEFORE ADDING THE ITEM TO YOUR CART. If no forklift is available, we can arrange terminal delivery for pick-up instead.
Additional Services & Fees
- Residential Delivery: $100
- Liftgate Service: $100 (not available for two post, four posts, and select scissor lifts; contact us to confirm before ordering)
Customer Responsibilities
- Customers are responsible for unloading freight from the truck.
- A forklift or unloading dock service is strongly recommended.
- Customers are responsible for any re-delivery fees if the carrier cannot complete delivery.
- Do not sign for damaged or incomplete shipments. Contact Customer Service immediately if items are missing or damaged.
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
