Katool KT-T160 Heavy-Duty Truck Tire Changer Machine for 14-26" Rims
Electro-hydraulic drive and multifunctional controls deliver controlled, repeatable movements for truck, bus, tractor and earth-moving tires. Beak-and-disk components concentrate force at the bead to ease demounting on heavy and delicate rims. The machine accommodates rims from 14 to 26 inches, wheel diameters up to 62 inches and widths up to 30 inches. Pump motor (1.5 kW / 2.0 HP) and gearbox motor (2.2 kW / 3.0 HP) provide stable torque for routine shop cycles. Working pressure is rated up to 130 bar to support consistent inflation and bead seating operations. Designed for fixed-floor installation with a robust structural frame suited to workshop environments. Low-voltage electric components and integrated safety controls reduce operator exposure to high-voltage assemblies. Freight shipping is required; packed dimensions are 79.9 x 61.8 x 32.7 inches and net weight is approximately 1,257 lb, so arrange forklift unloading. Single-phase 220V power supply simplifies integration where compatible mains are available. Supplied controls and accessories allow safe, single-operator use on most commercial vehicle wheels while minimizing rim damage.
Features
- Heavy duty electro-hydraulic tire changer for Trucks, Busses, tractors and earth-moving vehicle tires

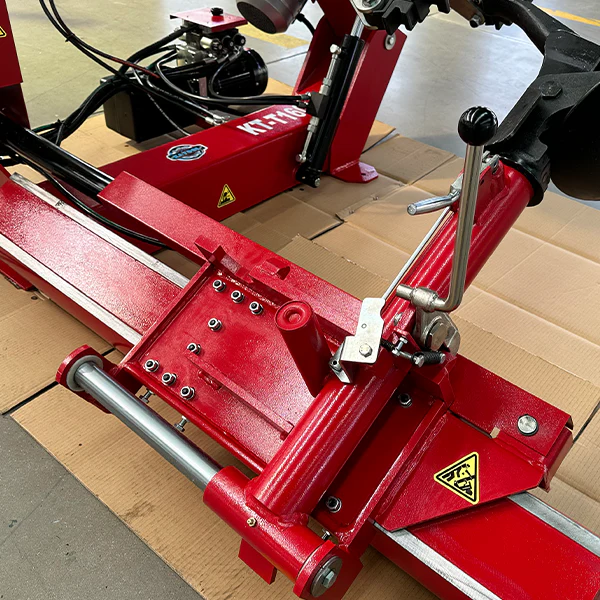

- Multifunctional control, allows the user to operate in any position safely

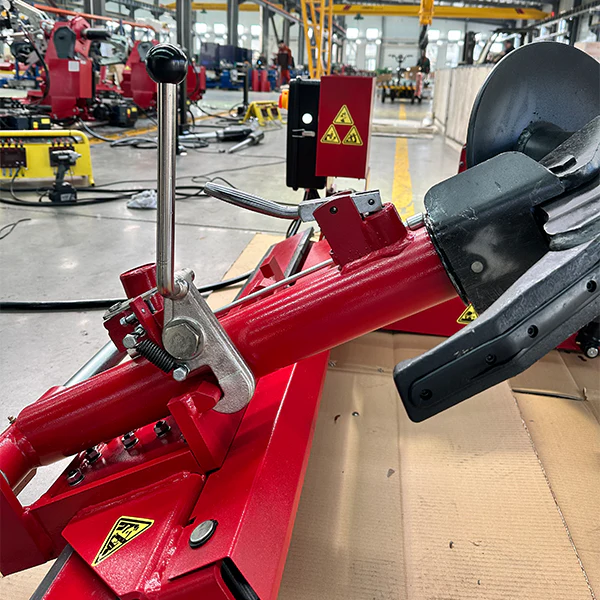

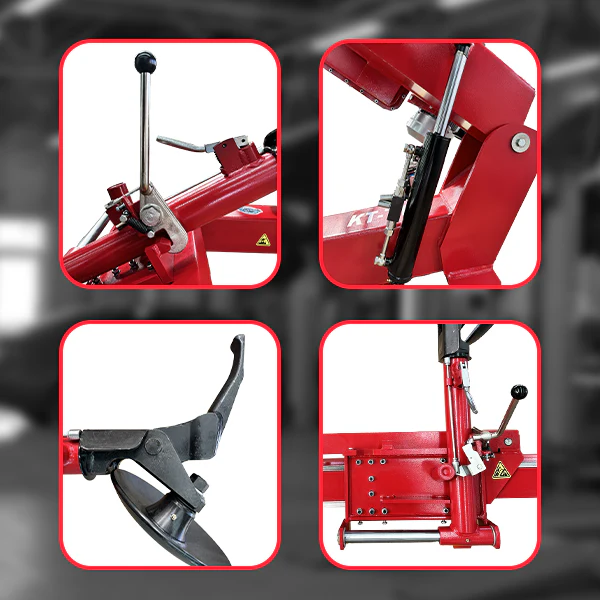

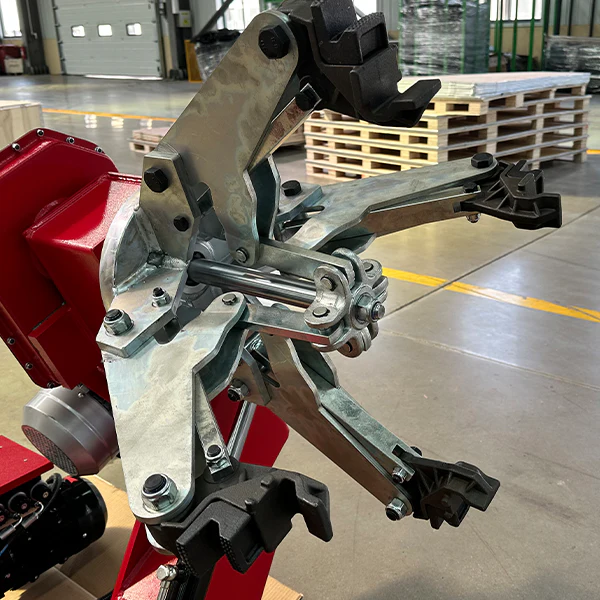

- Powerful, precise and quick: a beak and disk- it ensures the bead on wheels is particularly strong, even on the most delicate rims

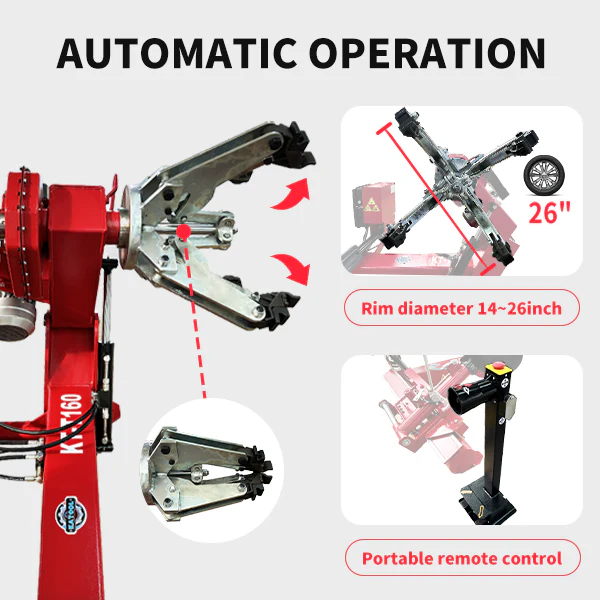

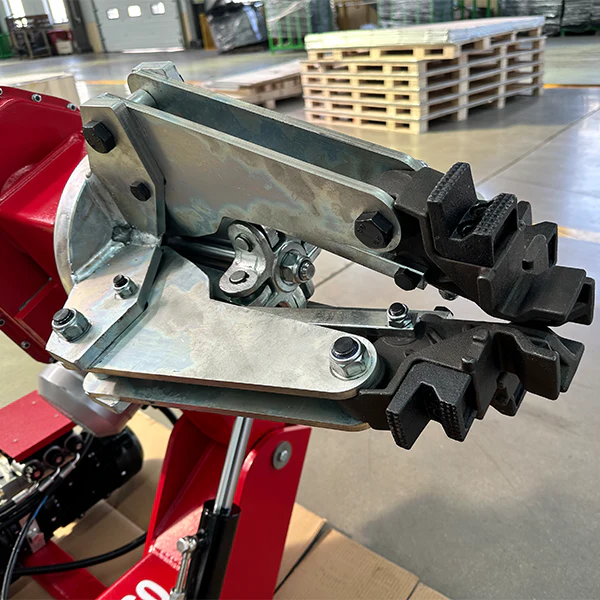

- Multifix system to operate from 14" up to 26"
- Low voltage electric components ensure user complete safety
Specifications
| Model | KT-T160 |
| Product type | Electro-hydraulic truck tire changer |
| Maximum wheel diameter | 62 in (1600 mm) |
| Maximum wheel width | 30 in (780 mm) |
| Rim diameter range | 14–26 in |
| Working pressure | ≤130 bar |
| Power supply | 220V 1PH |

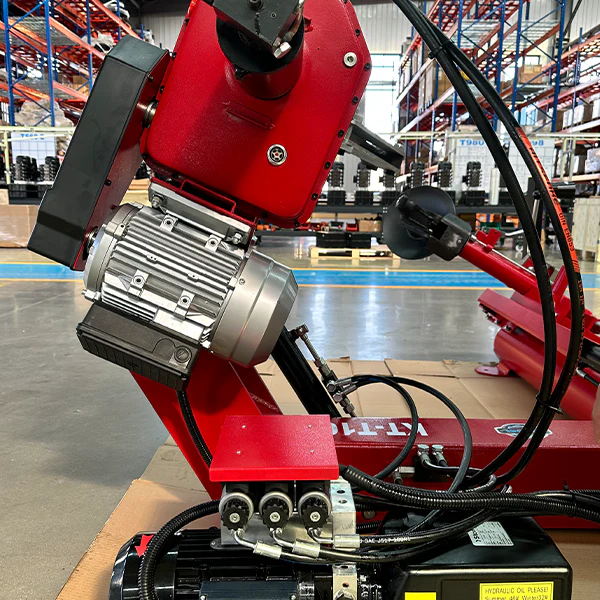

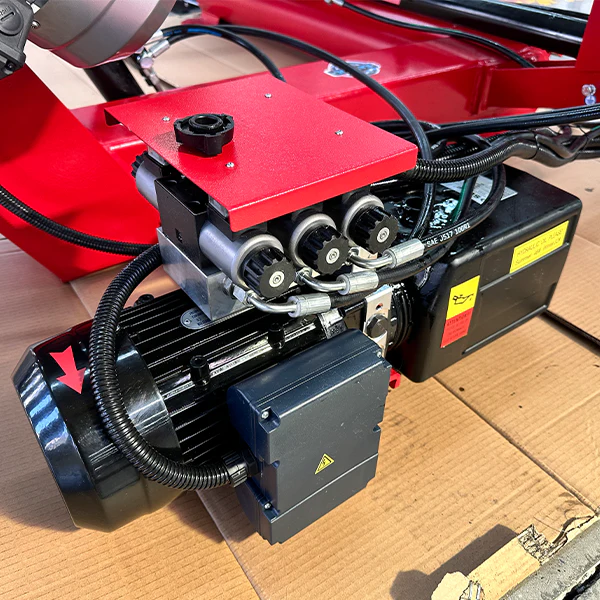

| Pump motor power | 1.5 kW (2.0 HP) |
| Gearbox motor power | 2.2 kW (3.0 HP) |
| Net weight | 1,257 lb (570 kg) |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
