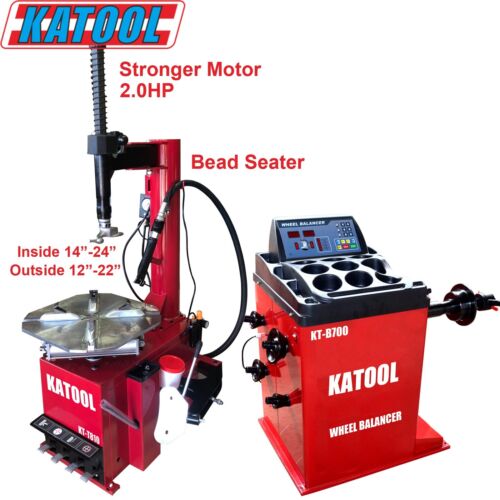

Katool KT-T810 Tire Changer & KT-B700 Wheel Balancer Combo

Designed for professional workshops, this combo pairs the KT-T810 tire changer with the KT-B700 wheel balancer to streamline tire service workflows. The KT-T810 accepts wheels up to 41 in diameter and 15 in width and uses alloy steel jaws with protective covers to minimize rim damage. Its 2.0 HP motor and pull-type pedal controls deliver consistent power and straightforward operation under heavy use. Integrated inflation gauge and a high-quality pneumatic filter simplify inflation and reduce moisture-related wear on pneumatic components. The KT-B700 balancer supports rims under 30 in, handles wheel widths from 3 to 12 in, and completes balance cycles in approximately 7 seconds at 180 rpm. Balancing accuracy to ±1 g and multiple balance modes accommodate a wide range of rim types and aftermarket wheels. Both units run on 120V single-phase power with robust copper-wound motors built for sustained shop duty. A closed-body design, solid welded steel construction and hardened components improve component longevity and reduce vibration during operation. Freight-only shipping and optional wheel guard or longer shaft configurations allow adaptation for commercial garages and heavy-duty shops. Comprehensive parts warranty terms are provided per unit and the package includes protective covers, basic mounting accessories and standard mounting hardware.

Features

KT-T810 Wheel Clamp Tire Changer Machine

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim

• The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim

• Inflation gauge with pedal control

• With high quality spade cover, effective prevent damage rim

• Pull type pedal control system, convenience for changing and maintenance

• Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
• With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system

• For North America region used 120V/1ph/2.0HP motor, more strong power and high efficiency working

• Closed body for protect inside parts well

KT-B700 Wheel Balancer

• The body use 3mm thickness steel, high strength, solid welding, few vibration

• All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision

• Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life

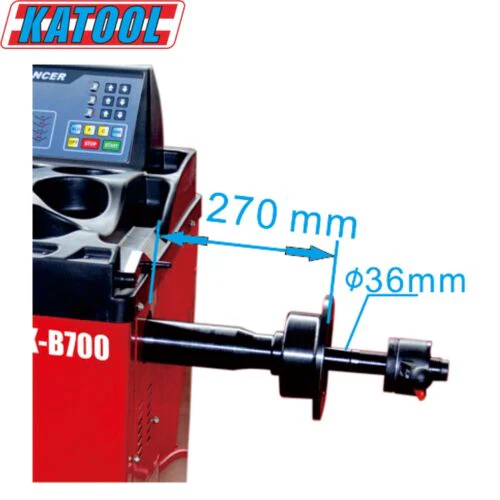

• The ?36mm shaft thread is by quenching treatment, high strength

• Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
• The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life

• Various balance mode, according different rim for different balance mode, make the balance effect more precision

• Built-in fault diagnosis and self calibration program that double side calibration, no memory parameters, operation more easy

• Unit selection(Ounce/Gram, MM/Inch)

• High quality integration power board, working stable and reliable

• Wheel guard for optional

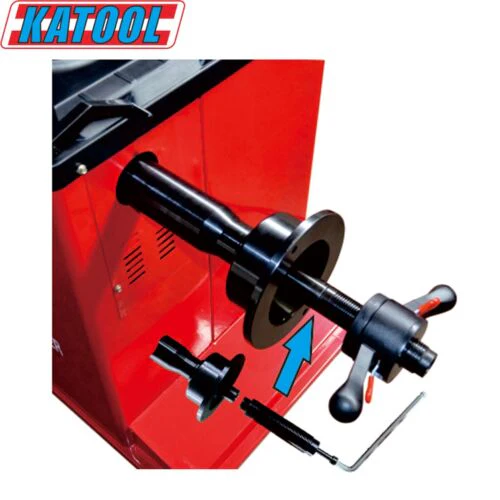

• Longer shaft for more width wheels

Specifications

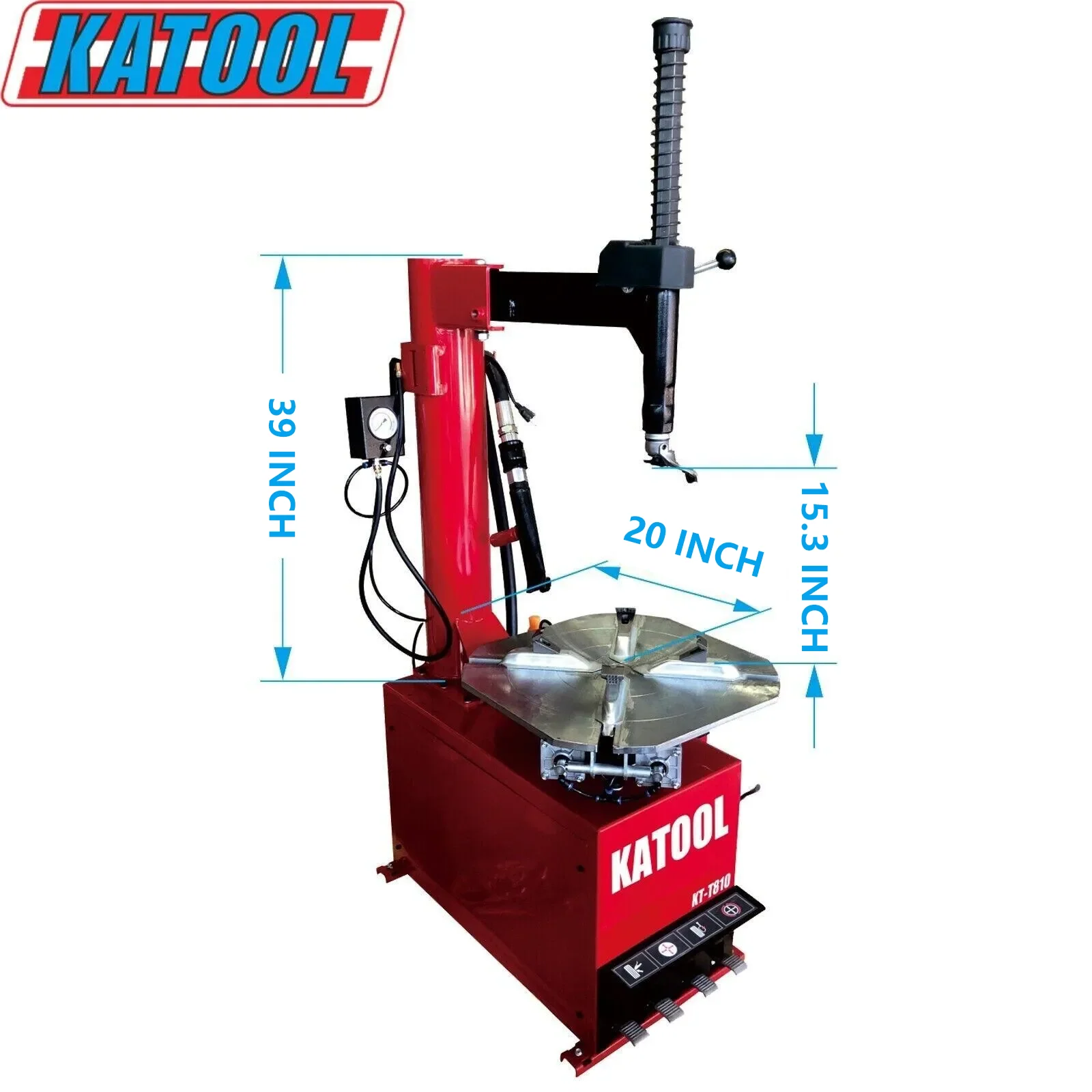

KT-T810 Wheel Clamp Tire Changer Machine

Max Wheel Diameter :	41"/1040mm
Max Wheel Width :	15"/380mm
Outside Clamp:	12"-22"
Inside Clamp :	14"-24"
Power Supply:	120V 1PH
Motor Power:	2.0HP/1.5KW
Rotation Speed :	6.8r/min
Air Pressure :	0.8-1.0Mpa(116-145psi)
Net weight :	186KG



KT-B700 Wheel Balancer

Rim Diameter:	<30"
Wheel Width:	3"-12"
Wheel Diameter:	<880mm
Balancing Speed:	180rpm
Power Supply:	120V 1PH
Motor Power:	0.25KW
Rim Center Hole Dia.:	<135mm
Wheel Weight:	<65KG
Balancing Accuracy:	1g
Measuring Time:	7S
